Overview

HT3564 series battery testers are designed for the new measurement requirements of the battery industry. They are special for measurement use in low-resistance batteries, large-scale lithium battery packs and fast product sorting in production lines.

The HT3564 series is capable of simultaneously checking internal resistance (IR) and battery voltage (OCV) at high speed. The product has high resolution, good stability, short test cycle, exquisite appearance, powerful function and various types of interfaces, which make it suitable for product development and automation production line.

With the technology advantage of Hopetech in battery internal resistance testing for many years, HT3563A/B series are able to offer a high resolution of 0.1uΩ and minimum resolution of 10uV.

Model HT3564 high voltage battery tester has maximum test voltage of 1000V.

Equipment with its standard features RS232C and hander interfaces, HT3563 series offer automatic measurement on batteries and a max measurement speed up to 50 times/sec.

Feature

  • The HT3563A/B series and 3564 have the same appearance and size, only their test voltage is different

  • Resistance minimum resolution 0.1uΩ, minimum voltage resolution 10uV

  • Minimum test cycle only 10mS

  • The maximum test voltage up to 1000V (HT3564 only)

  • Standard various interfaces for automatic test equipment

  • Strong anti-interference ability

  • AC four-terminal method, measure low-resistance in high-precision

  • Available automatic test function

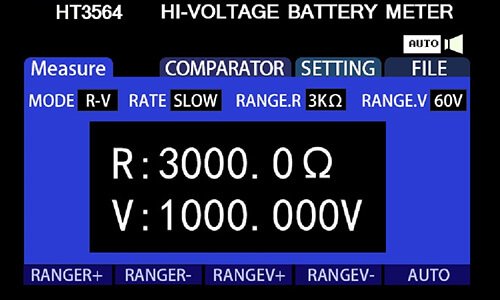

3564 10μV~1000V 3564 Battery Tester Operation Interface

10μV~1000V 3564 Battery Tester Operation Interface

10μV~300V 3563A Battery Tester Choosing Comparator Record

10μV~1000V 3564  Battery Tester Choosing Comparator Record

10μV~300V 3563A Battery Tester Beeper Configuration

10μV~1000V 3564 Battery Tester Beeper Configuration

Specification

ModelHT3564
Display4.3 inch  TFT-LCD display
Measurement parametersACR,DCV
ResistanceAccuracy0.3%
Range 0.1μΩ ~ 3kΩ
VoltageAccuracy0.01%
Range10μV~1000V
Signal SourceMeasurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA
Range7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ;
Auto and manual modes are available in each range
Measuring speed100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec.
CalibrationShort-circuit reset for all ranges;
Comparator30 sets of data records, 4 bins sorting, bin count
Othersdata/report save, USB disk export,
Trigger modeInternal/manual/external/bus trigger
InterfaceRS-232/485, Handle (PLC interface), USB, Ethernet
Power supplyVoltage: 100VAC~256VAC; Frequency: 50Hz~60Hz;
Power(max)15VA
Dimension(L*W*D)325 mm*215 mm*96.5 mm
Weight3 kg
Standard accessoriesHT9363A test clip, HT9800 communication cable,PB36 connector, power cord
3564 hight voltage battery tester 01

Charging Pile

3564 hight voltage battery tester 02

New Energy Vehicle Charger

3564 hight voltage battery tester 03

Soft Pack Battery

3564 hight voltage battery tester 04

Storage Battery

Functions and Advantages

Fast sorting in automatic lithium battery production line

Thanks to HT3653B high precision and functional design, Hope Instrument battery tester is the tailor-made solution for your battery internal resistance and voltage test, small scale battery formation, capability grading, battery pack testing, etc.

With the rapid development of electronic products like cell phones, laptops, new energy electronic vehicles and other portable electronic devices, there is a higher need in batteries manufacturing. Meanwhile the requirement for batteries has become higher and more accurate. Hope instrument HT3563B reliable precision internal resistance battery tester is suitable to offer fast sorting in battery automatic production line and greatly help battery manufacturer to improve productivity under good product quality control.

The HT3561 Economic Battery internal Resistance Tester 4

High-voltage 10μV~1000V application in battery testing

The difficulty of high-voltage battery testing is that high voltage will impact the internal circuit through the isolation capacitor CS, and the reduced capacity value will reduce the impact of high voltage on internal circuits, but too high capacitive reactance will cause excessively high open circuit voltage, which cause hidden damagers to human body and battery itself. Hope Instrument solves this problem very well and HT3563 series has a max voltage of 60V~1000V for the battery packs.

ModelHT3563HT3563AHT3563BHT3564
Max Test Voltage10μV~60V10μV~300V10μV~800V10μV~1000V

3564 battery tester high voltage application 10μV~1000V

3563 battery tester high voltage application 10μV~1000V

Accessories

CHT9363A Test clip

HT9363A Test clip

CHT9800 communication cable

HT9800 Communication Cable

Power cord

Power Cord

PB 36 connector

PB 36 Connector

More models for difference specification available

ModelHT3563HT3563AHT3563BHT3564
Voltage Range10μV~60V10μV~300V10μV~800V10μV~1000V
